In the colorful digital world, LED displays are like beautiful paintings that vividly present information to us. But are you curious about what kind of "black technology" is hidden behind these screens, allowing countless pixels to precisely emit light and weave such beautiful images? Today, we are going to unveil the secret of SMD packaging technology in LED displays and see how this "little giant" demonstrates its prowess.

SMD, the full name of which is Surface Mounted Device, means surface mounted device. In the field of LED displays, SMD packaging technology is a technology that packages LED chips, brackets, leads, and other components into miniaturized, pinless LED lamp beads, and mounts these lamp beads directly onto the printed circuit board (PCB) using an automatic placement machine. Compared with traditional DIP (dual in-line package) technology, SMD packaging technology has higher integration, smaller size and lighter weight.

Next, the automated placement machine will accurately place the SMD LED lamp beads on the PCB board according to the predetermined position and angle. During this process, the placement machine uses a high-precision visual recognition system and a robotic arm to ensure that each lamp bead can be placed accurately in the designated position.

Finally, the SMD LED lamp beads and the PCB board are firmly soldered together through high-temperature reflow soldering technology. Under high temperature, the solder melts and penetrates into the tiny gap between the lamp beads and the PCB board, forming a stable electrical connection and mechanical fixation. In this way, the SMD packaging technology completes the manufacturing process of each pixel on the LED display.

At present, on the market, from indoor small pitch to outdoor full-color large screen, many models of LED display screens use SMD packaging technology. Especially for display screens with a pitch range of P1.8 to P20, SMD packaging technology has become the mainstream choice due to its maturity and cost-effectiveness.

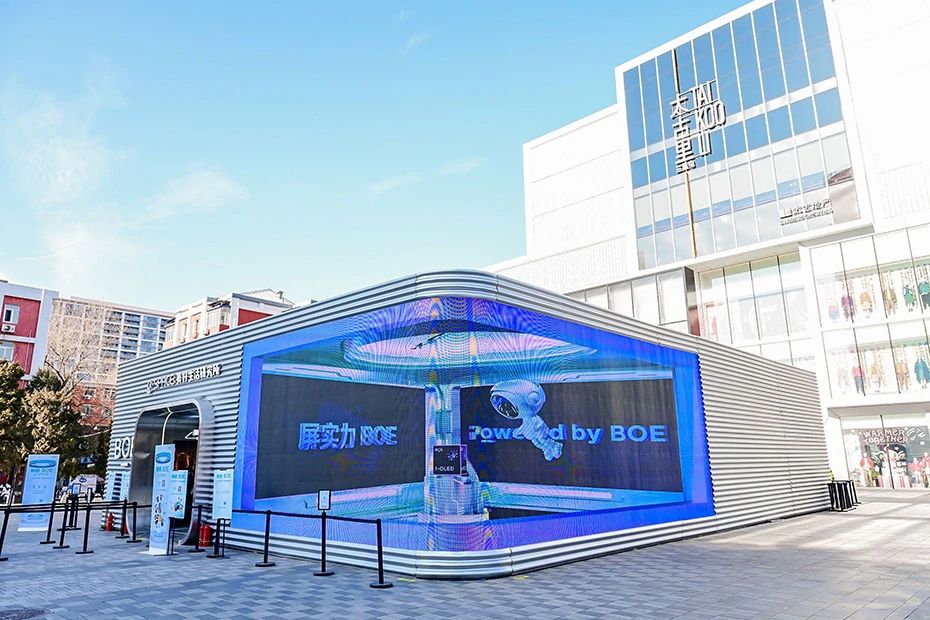

④ Outdoor media: outdoor display applications such as urban landscape lighting and highway billboards.

SMD packaging technology, as the "little giant" behind the LED display, has become an indispensable part of the modern electronics manufacturing industry with its many advantages such as small size and lightness, efficient production, good heat dissipation and easy maintenance. It not only promotes the rapid development of LED display technology, but also brings us a clearer, more gorgeous and vivid visual experience. With the continuous advancement of science and technology, I believe that SMD packaging technology will continue to shine and create more miracles in the future.
