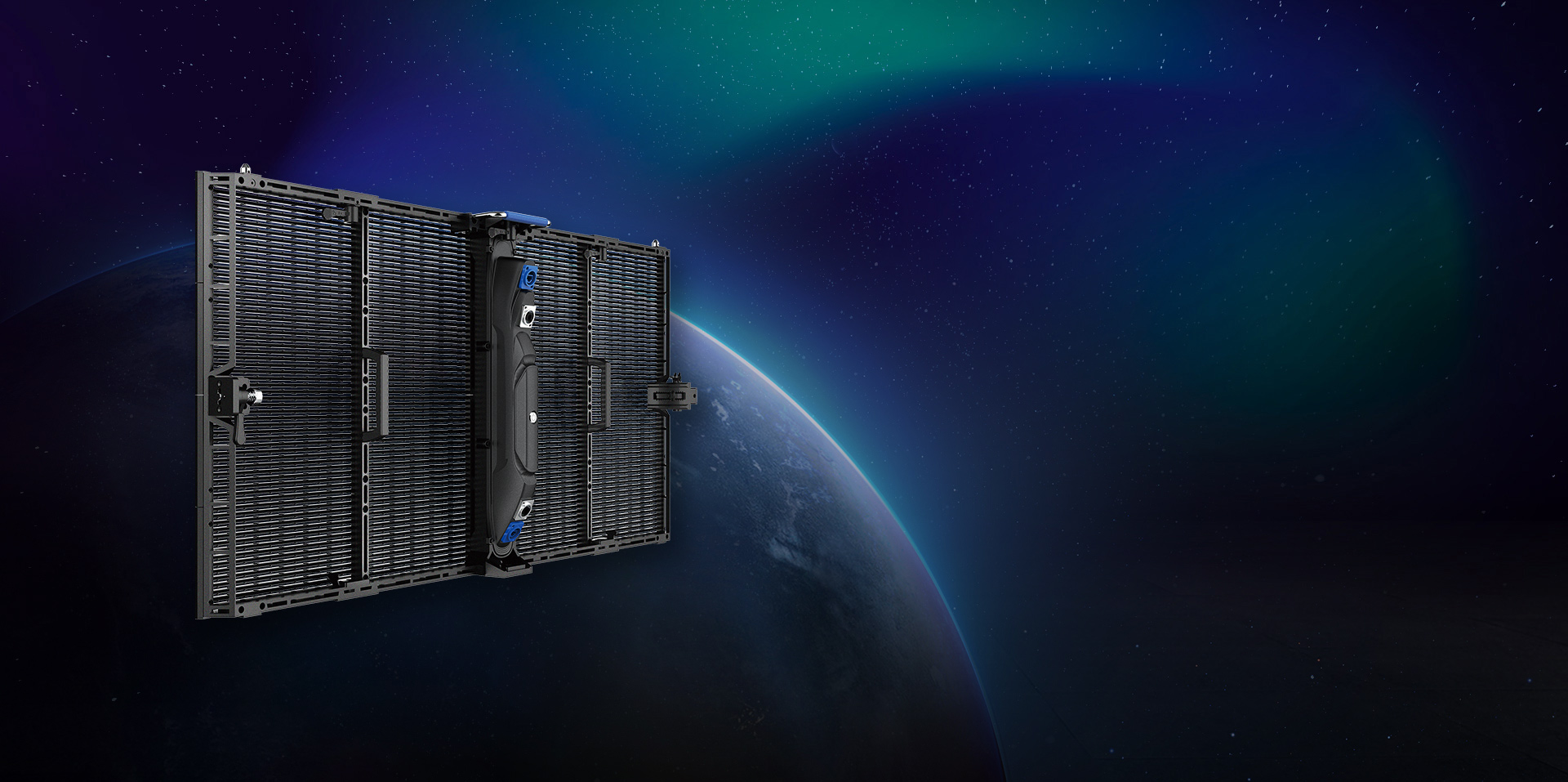

Air 320 Series - Rental LED Screen - Products - Creative special-shaped led displays,Indoor&Outdoor flexible bend LED displays,Holographic invisible transparent screens Shinerave Electronic Co.,Ltd.

Die Casting Aluminum

Multiple Pixel Pitch Options

Front & Rear Maintenance

High Flatness

Die Casting Aluminum

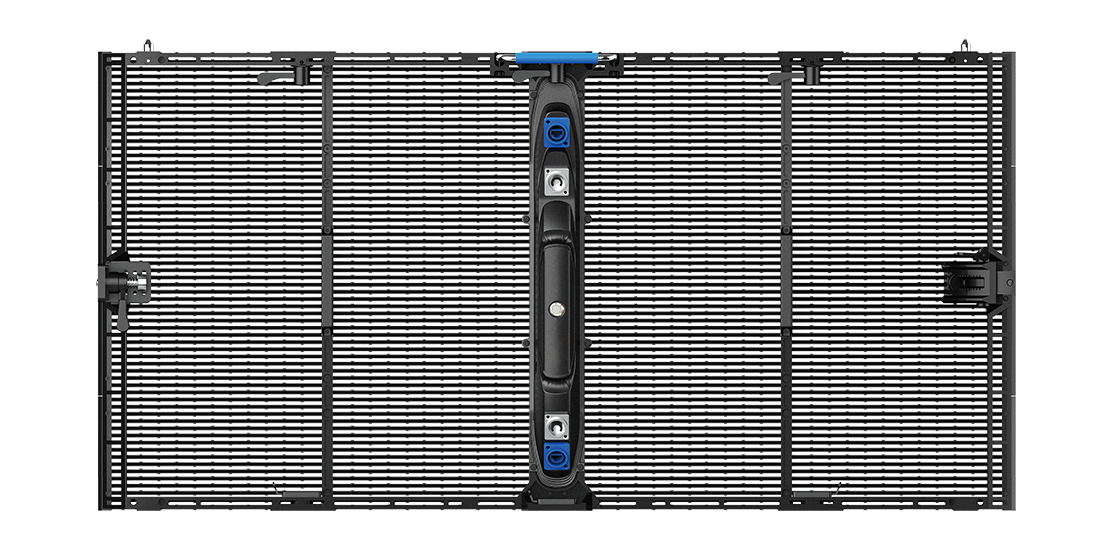

Hot: 2023 New Product

High transparence: 42%

Lightest weight: 7kg/500*1000mm Panel

Curve: Available

Usage: Outdoor & indoor event both use

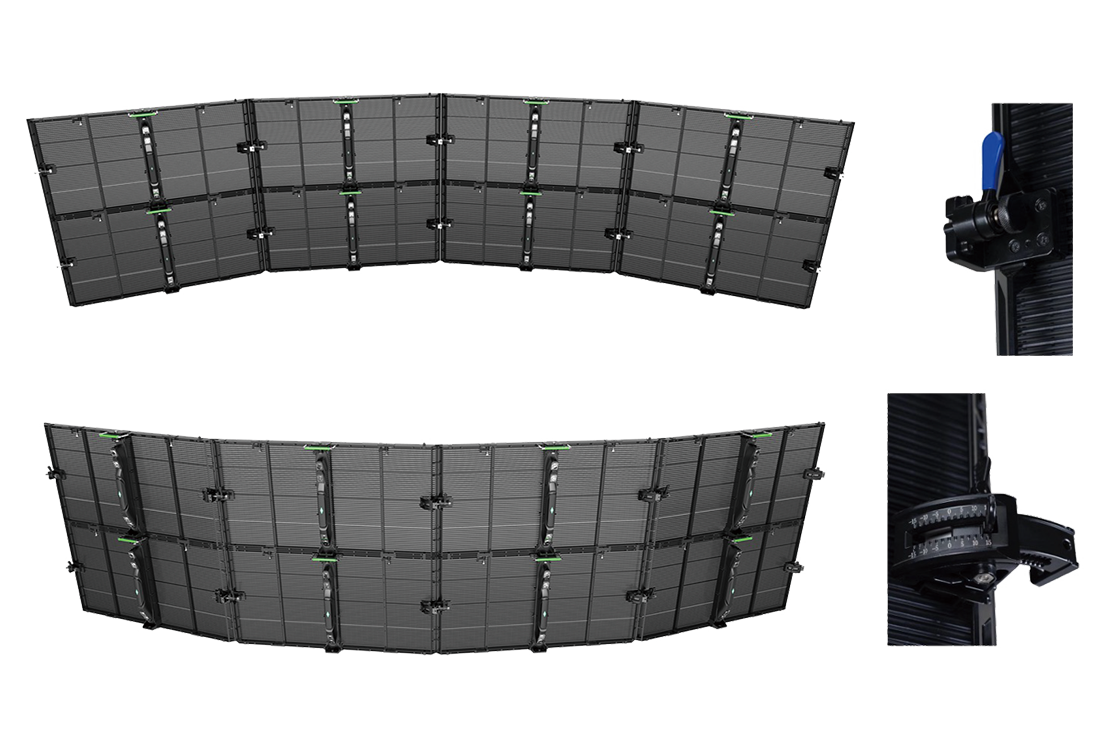

Radian Lock

Support for the arc +15 / -15 (2.5°each unit)

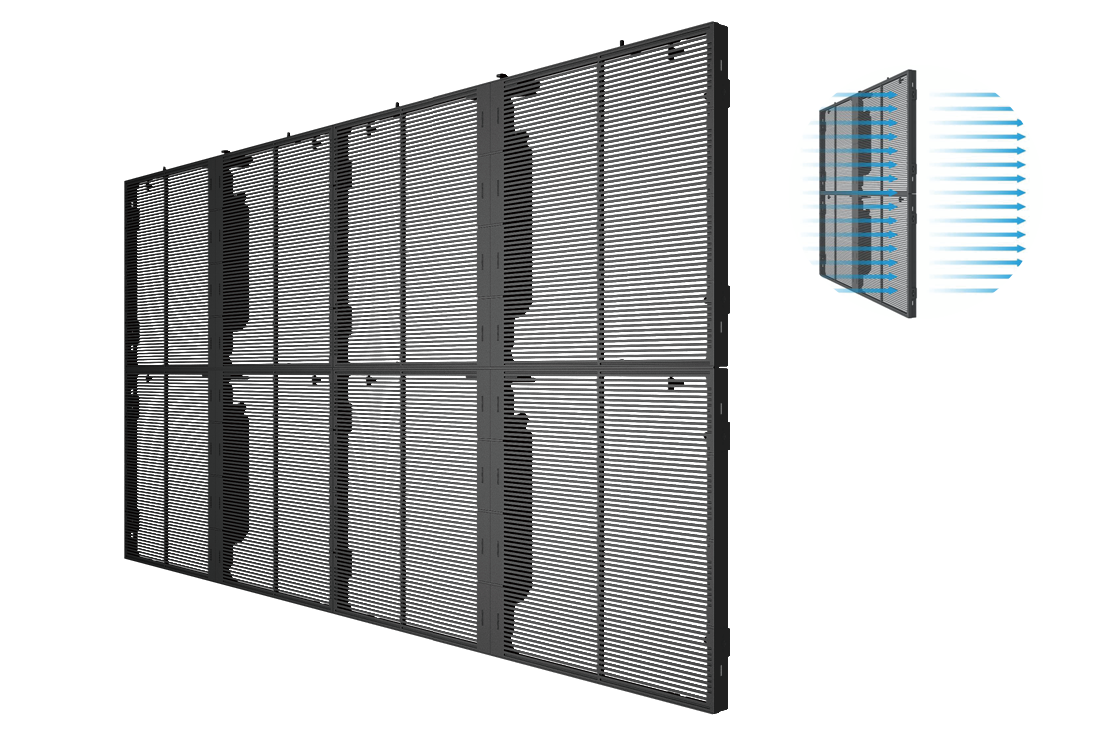

Key Feature

High transparence up to 42%

High brightness more than 5000cd/sqm

Easy and quick installation

Customized for specific applications

Multifunction, fixed and rental both

Ultra & slim, only 7kg per panel

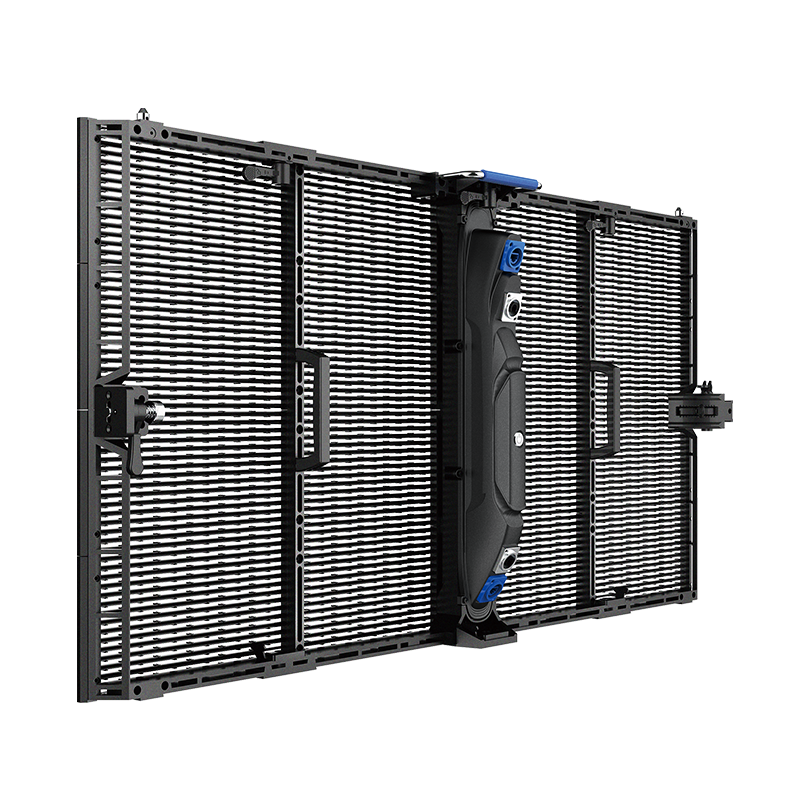

Air series

Pixel Pitch : 3.9-7.8 / 3.9-8.9

LED : SMD1921

Pixel Density : 32,768pixel/m²,28,672pixel/m²

Brightness: 0-5000nits

Refresh Rate : 3840Hz

Protection Level : IP65

Weatherproof, dustproof

Specifications

Rental LED Screen series

P3.9-7.8 (H3.9-V7.8)

Pixel Pitch (mm)
LED Type
Panel Size (WxH)/(mm)
Pixel Per Panel
Pixel Per Module
Pixel Per Sqm
Panel Material
Panel Weight (kg)
Brightness (CD/sqm)
Refresh Rate (Hz)
Gray Scale (bit)
Viewing Angle (H/V) (°)
AC Operating Voltage (V)
Avg. Power Consumption (W)
Max. Power Consumption (W)
Storage Temperature (℃)
Operating Temperature (℃)
IP Rating (Front/Rear)
LED Lifetime (H)
Module Maintenance
PSU & Others Maintenance
Scan

P3.9-7.8 (H3.9-V7.8)
3 In 1 SMD1921
1000*500
256*64
128*16
32,768
Die-casting Aluminum
7
0-5000 (Ajustable)
3840
14-16
140/140
110-220
260/sqm
800/sqm
﹣40~﹢60
﹣20~﹢60
IP65
100000
Rear
Cabinet Front Maintenance
1/8
