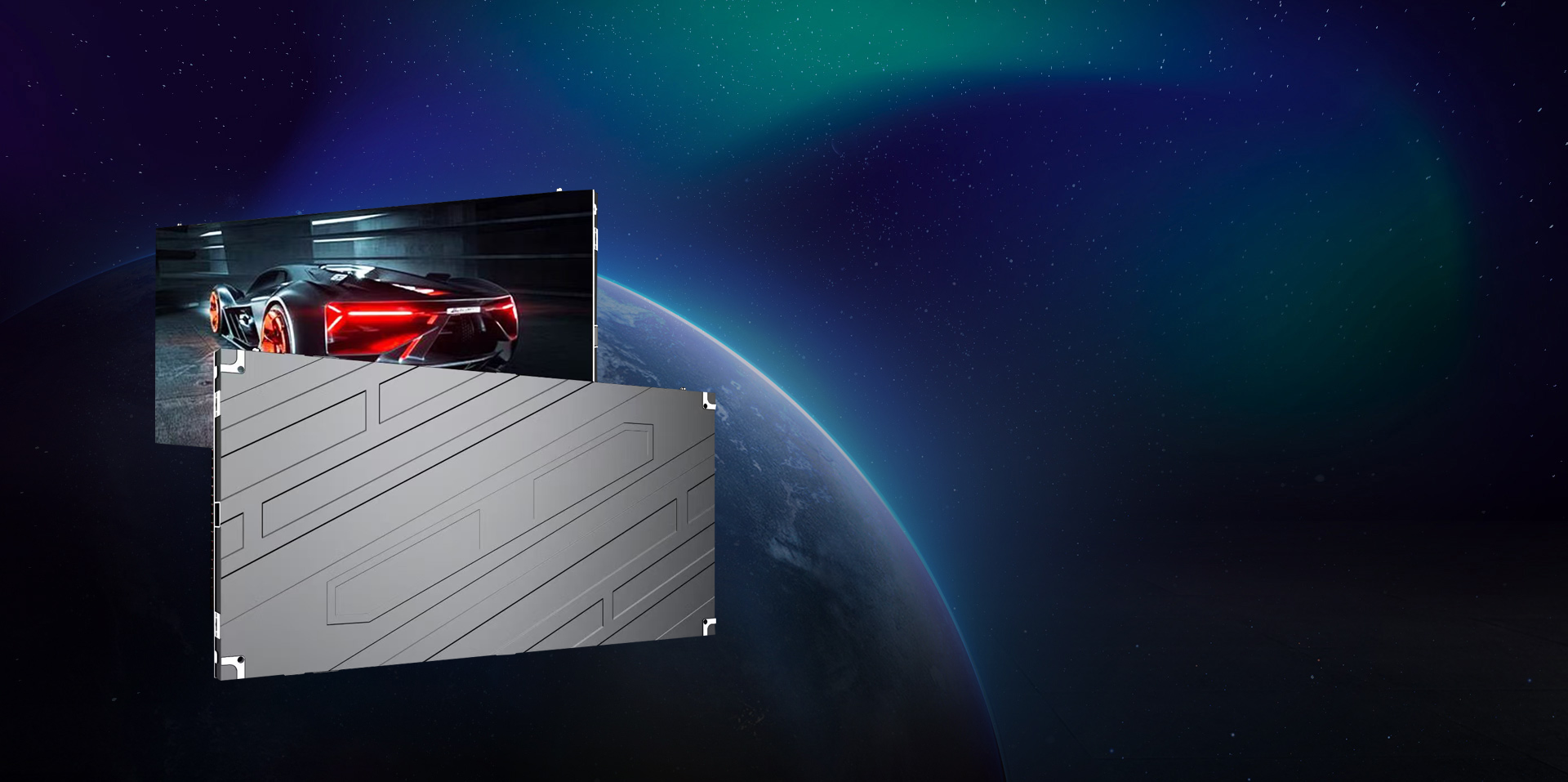

CV Series - CV P1.2/P1.5/P1.8 - Indoor LED Displays - Products - Creative special-shaped led displays,Indoor&Outdoor flexible bend LED displays,Holographic invisible transparent screens Shinerave Electronic Co.,Ltd.

High Quality

Multiple Pixel Pitch Options

Front & Rear Maintenance

High Flatness

High Quality

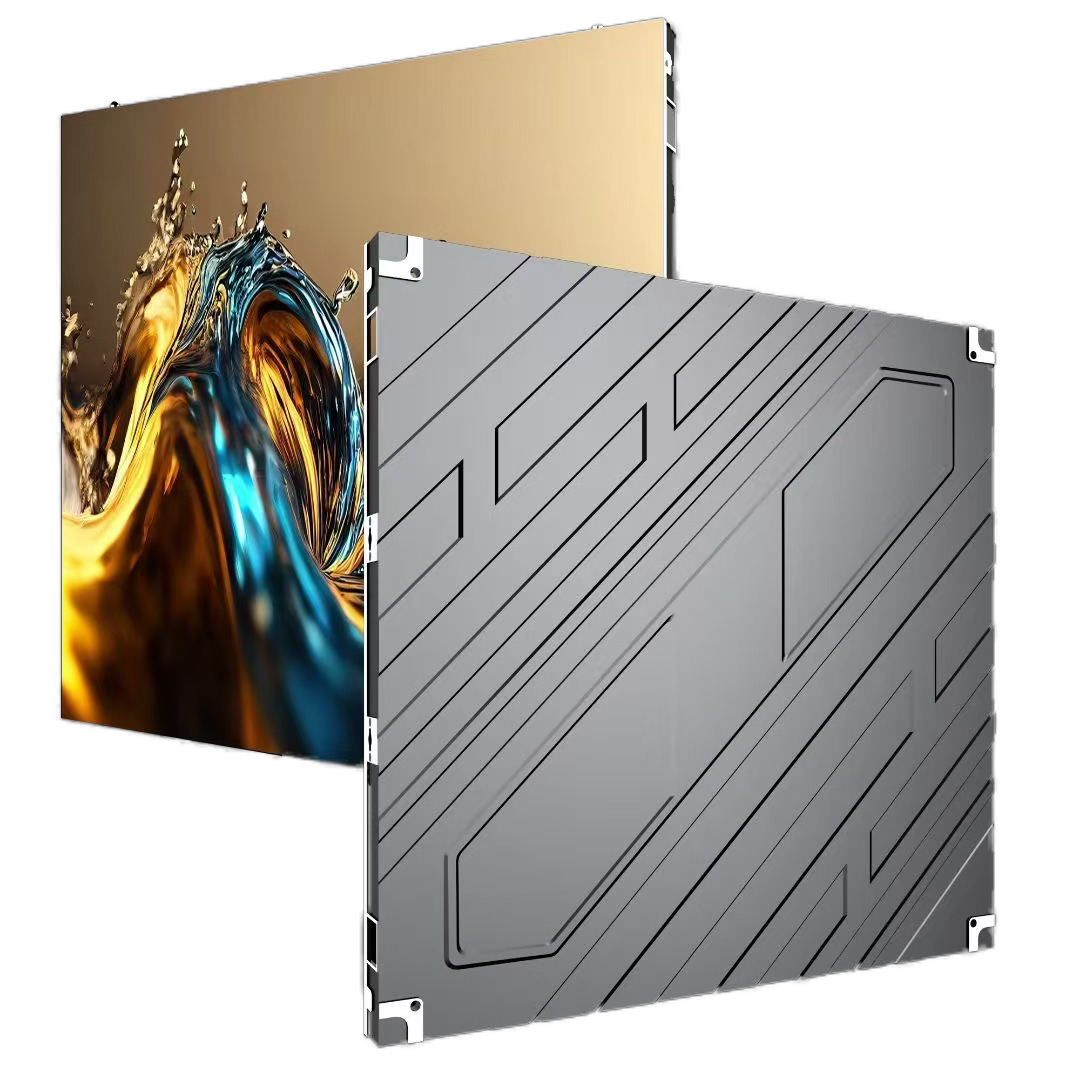

Product dimension

Flash silver and black matte to choose for the cabinet

Double power&signal system design to handle any

unexpected emergency

Memory on board ensuring efforts to switch modules

freely and store calibration data

16:9 aspect ratio for easy setting up screen and

pixel-to-pixel screen quality

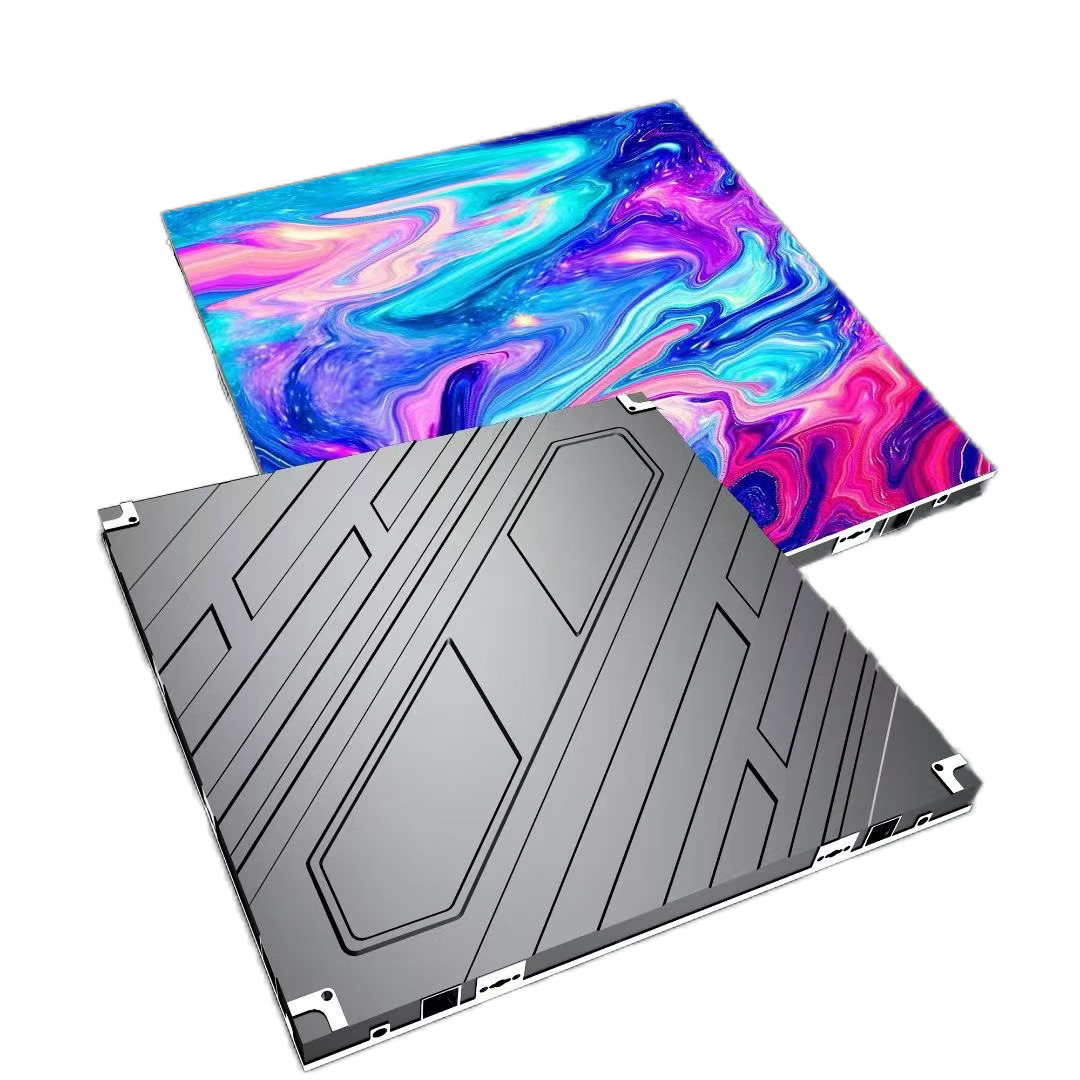

640*480mm cabinet size

Fine pitch high cost performance

Die-casting aluminum cabinet

Front maintenance 100%

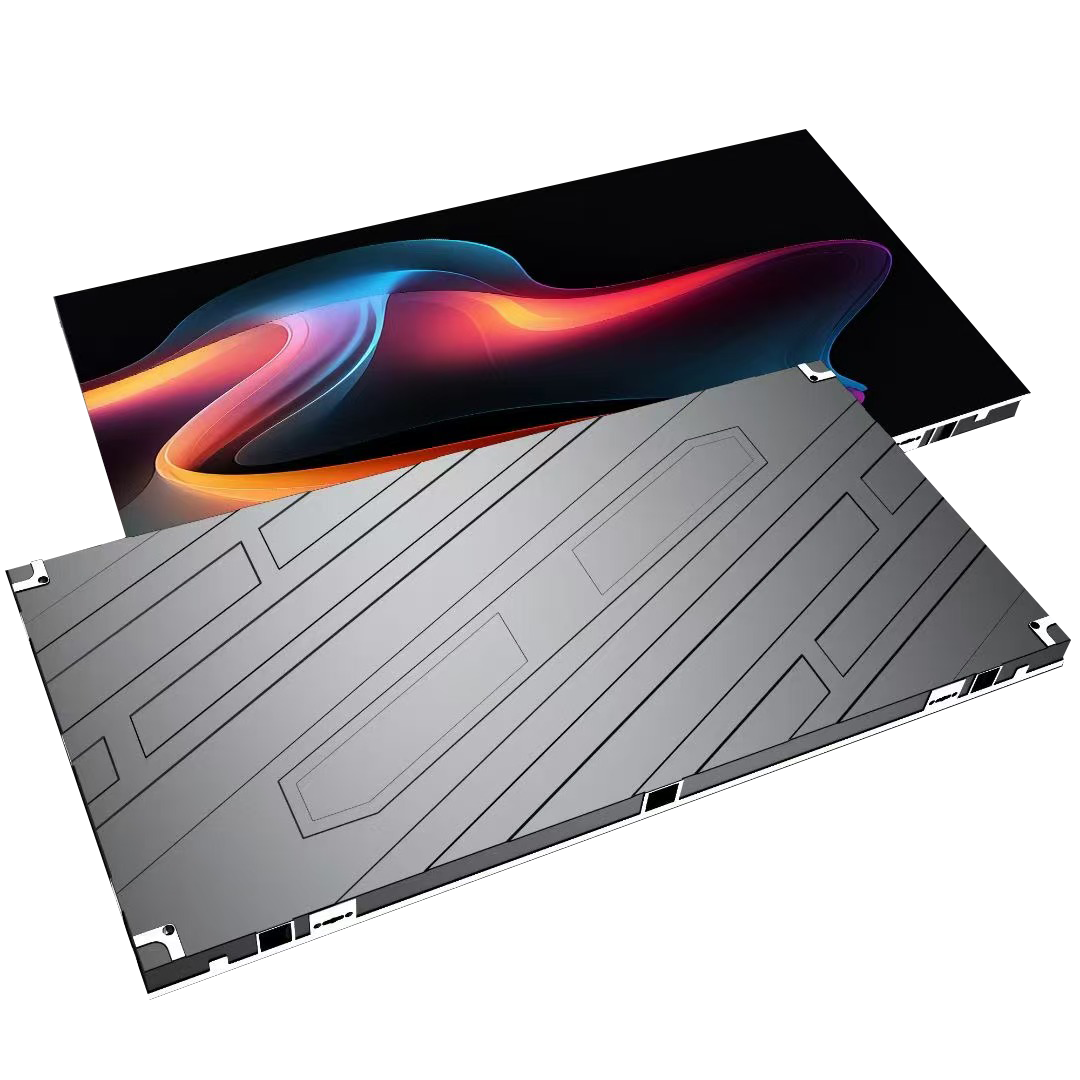

Installation

With four locating pins on top and one ball punger, and

handy cabinet locks, all installation will facilitate and be fixed firmly

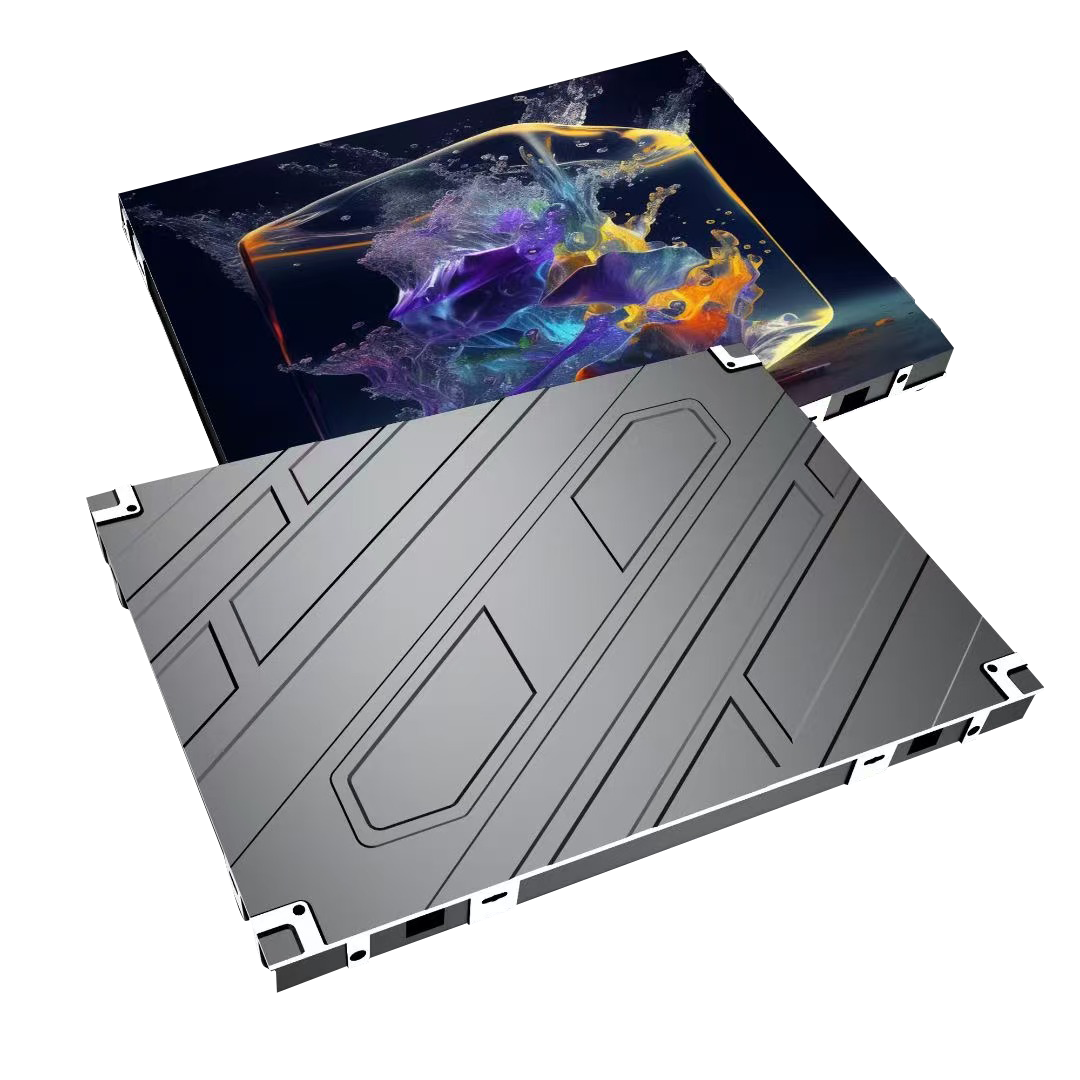

3rd generation Cabinet

This comes to THe 3rd generation with 6.9kg weight and slim, smooth make

Specifications

CV P1.2/P1.5/P1.8 series

P0.93

P1.25

P1.56

P1.87

Item Number
Pixel Pitch
Pixel Density
LED Arrangement
Best Viewing Distance
Module arrangement
Modules Size
Module Resolution
Max Power Consumption
Ave Power Consumption
Panel Dimension
Cabinet Depth
Backup Support
Panel Weight
Brightness Level
Brightness Uniformity
Pixel Level Calibration
Color temperature
Gray Scale (Bit)
Installation Type
Maintenance Way
Driving Mode
Control system
Lifetime
Visual View Angle
Operating Power Source
Operating Temperature
Operating humidity
Contrast ratio
Refresh Rate
Protecting Rating
Operating system
Control Distance
Signal Input Source

P0.93
0.93mm
1137778pixels/m²
Mini 4in1
>0.9 meter
2*2 pcs
300*168.75mm
320x180pixels
600W/m²
200W/m²
600X337.5mm
52mm
Power supply / Receiver card
6.9kg
600-800 nits
99%
Yes
6500 K (Ajustable)
14-22
Wall mounting / Stacking
Full front service
Constant current
Novastar
>100,000 hours
160°/160°
110-220V/ AC 50-60Hz
-20~ +55 degree
10％～ 90％
5000:1
3840Hz
IP30
Windows
<100 meters: UTP CAT.6 network cable (without relay).Or optical fiber transmission for over 500M-10,000M.
S-video,VGA,DVI,HDMI,SDI,DP

P1.25
1.25mm
640,000pixels/m²
SMD1010
>1.2 meter
2*2 pcs
300*168.75mm
240*135 pixels
600W/m²
200W/m²
600X337.5mm
52mm
Power supply / Receiver card
6.9kg
600-800 nits
99%
Yes
6500 K (Ajustable)
14-22
Wall mounting / Stacking
Full front service
Constant current
Novastar
>100,000 hours
160°/160°
110-220V/ AC 50-60Hz
-20~ +55 degree
10％～ 90％
5000:1
3840Hz
IP30
Windows
<100 meters: UTP CAT.6 network cable (without relay).Or optical fiber transmission for over 500M-10,000M.
S-video,VGA,DVI,HDMI,SDI,DP

P1.56
1.56mm
409,600pixels/m²
SMD1212
>1.5 meter
2*2 pcs
300*168.75mm
192*108 pixels
600W/m²
200W/m²
600X337.5mm
52mm
Power supply / Receiver card
6.9kg
600-800 nits
99%
Yes
6500 K (Ajustable)
14-22
Wall mounting / Stacking
Full front service
Constant current
Novastar
>100,000 hours
160°/160°
110-220V/ AC 50-60Hz
-20~ +55 degree
10％～ 90％
5000:1
3840Hz
IP30
Windows
<100 meters: UTP CAT.6 network cable (without relay).Or optical fiber transmission for over 500M-10,000M.
S-video,VGA,DVI,HDMI,SDI,DP

P1.87
1.875 mm
285,204pixels/m²
SMD1515
>1.8 meter
2*2 pcs
300*168.75mm
160*90 pixels
600W/m²
200W/m²
600X337.5mm
52mm
Power supply / Receiver card
6.9kg
600-800 nits
99%
Yes
6500 K (Ajustable)
14-22
Wall mounting / Stacking
Full front service
Constant current
Novastar
>100,000 hours
160°/160°
110-220V/ AC 50-60Hz
-20~ +55 degree
10％～ 90％
5000:1
3840Hz
IP30
Windows
<100 meters: UTP CAT.6 network cable (without relay).Or optical fiber transmission for over 500M-10,000M.
S-video,VGA,DVI,HDMI,SDI,DP
