OU Series - Outdoor LED Displays - Products - Creative special-shaped led displays,Indoor&Outdoor flexible bend LED displays,Holographic invisible transparent screens Shinerave Electronic Co.,Ltd.

High Quality

Multiple Pixel Pitch Options

Front & Rear Maintenance

High Flatness

High Quality

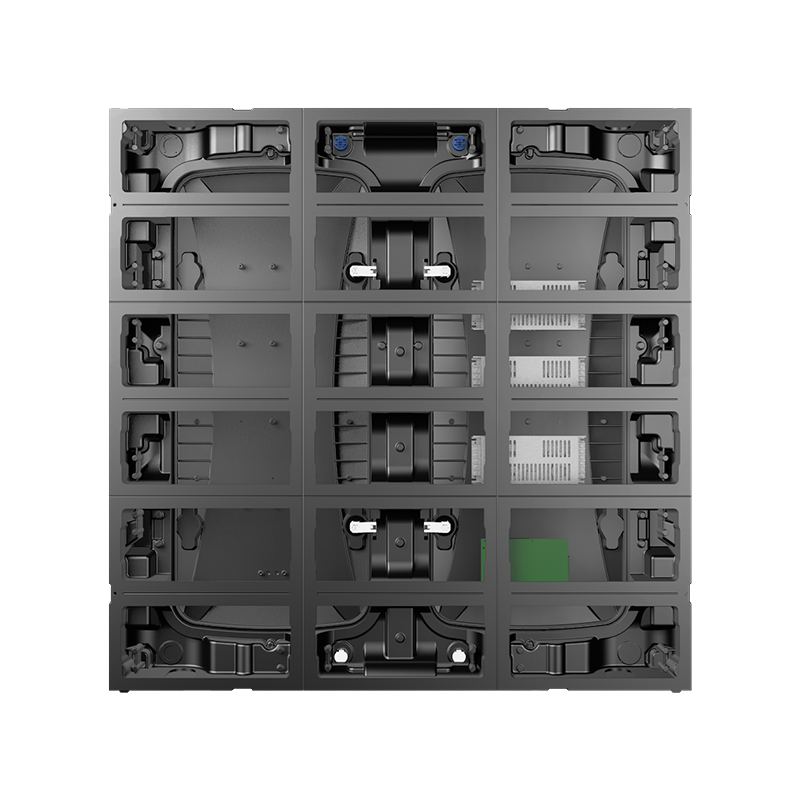

Easy cabinet frame

natrual cooling without AC and fans, assemble easily with

up & down lock, do not mark any cabinet number

when purchase and intall at the first time

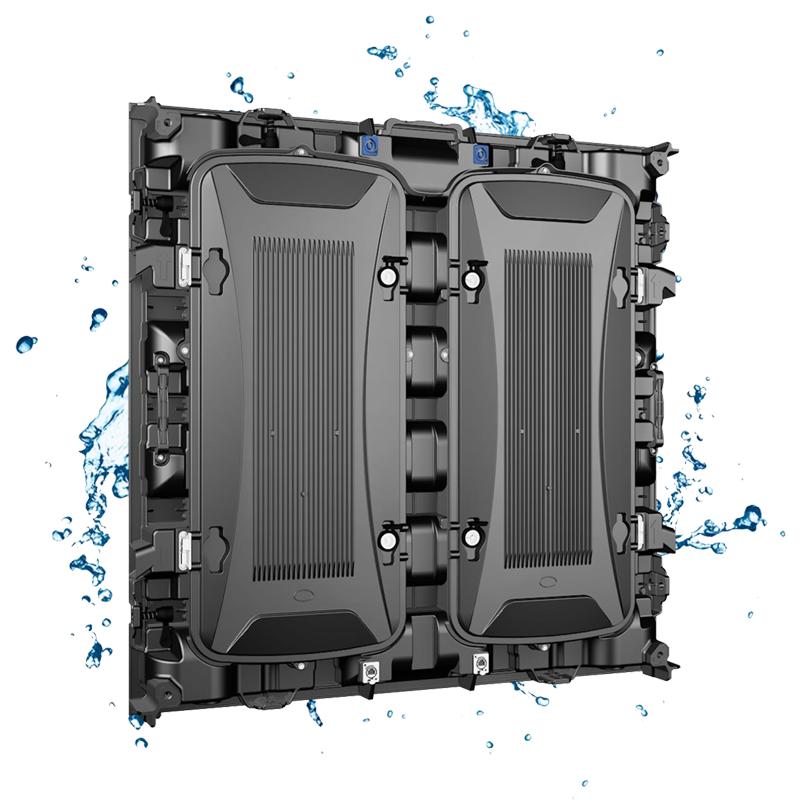

Waterproof IP65

versatile pixel pitch selections from P3.076 to P8,capable of

ultra -high definition (UHD) resolutions & beyond

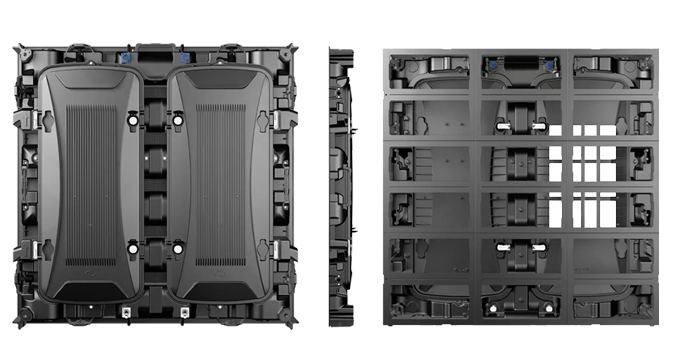

product size

320*160mm modules with Die-casting aluminum 960*960mm cabinet,

109mm cabinet depth, light weight per panel only 28Kg

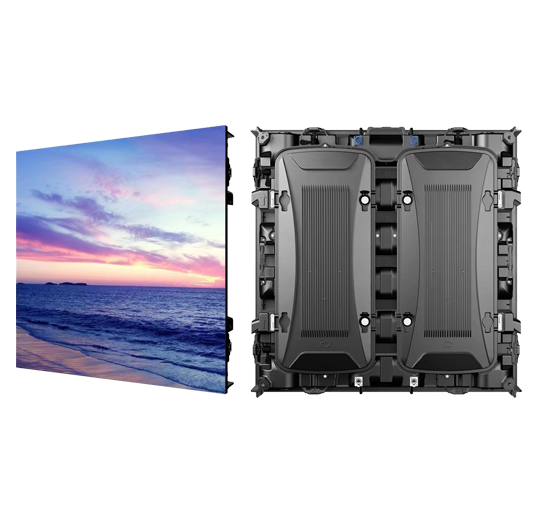

Hot: 1,000,000+cabinets manufactured

Nationstar 7000nits brightness

Die-casting aluminum Cabinet

28KG/ 960*960mm

Specifications

Outdoor LED Displays series

Item Number
Pixel pitch
Pixel Density
LED Arrangement
Min Viewing Distance
Modules Size
Module Quatity
Module Resolution
Max Power Consumption
Ave Power Consumption
Panel Dimension
Cabinet material
Panel Weight
Brightness Level
Calibration
Gray Scale (Bit)
Maintenance Type
Driving Mode
Control system
Frame
Lifetime
MTBF
Delivery time
Cable plug
Contrast Ratio
Visual View Angle
Operating Power Source
Operating Temperature
Operating humidity
Refresh Rate
Protecting Rating
Operating system
Control Distance
Signal Input Source

P3
3.076 mm
105,625 pixels/㎡
SMD1415
3 meter
320*160 mm
3 *6 pcs
104 x 52 pixels
700W/㎡
250W/㎡
960*960mm*109 mm
Die-casting Aluminum
28KG
5000-6500 nits
Yes
14-16
Rear
Constant current
Novastar
50-60Hz
>100,000 hours
10000hours
2 weeks
Seatronic / Neutrik
5,000:1
160°/140°
110-220V/ AC 50-60Hz
-20~ +55 degree
10％～ 90％
3840Hz
IP65
Windows
<100 meters: UTP CAT.6 network cable (without relay).Or optical fiber transmission for over 500M-10,000M.
S-video,VGA,DVI,HDMI,SDI,DP

P4
4 mm
62,500pixels/㎡
SMD1921
4 meter
320*160 mm
3 *6 pcs
80 x 40 pixels
700W/㎡
250W/㎡
960*960mm*109 mm
Die-casting Aluminum
28KG
5000-6500 nits
Yes
14-16
Rear
Constant current
Novastar
50-60Hz
>100,000 hours
10000hours
2 weeks
Seatronic / Neutrik
5,000:1
160°/140°
110-220V/ AC 50-60Hz
-20~ +55 degree
10％～ 90％
3840Hz
IP65
Windows
<100 meters: UTP CAT.6 network cable (without relay).Or optical fiber transmission for over 500M-10,000M.
S-video,VGA,DVI,HDMI,SDI,DP

P5
5 mm
40,000 pixels/㎡
SMD1921
5 meter
320*160 mm
3 *6 pcs
64 x 32 pixels
700W/㎡
250W/㎡
960*960mm*109 mm
Die-casting Aluminum
28KG
5000-6500 nits
Yes
14-16
Rear
Constant current
Novastar
50-60Hz
>100,000 hours
10000hours
2 weeks
Seatronic / Neutrik
5,000:1
160°/140°
110-220V/ AC 50-60Hz
-20~ +55 degree
10％～ 90％
3840Hz
IP65
Windows
<100 meters: UTP CAT.6 network cable (without relay).Or optical fiber transmission for over 500M-10,000M.
S-video,VGA,DVI,HDMI,SDI,DP

P6
6.6mm
22,477 pixels/㎡
SMD 2727
6 meter
320*160 mm
3 *6 pcs
48x 24 pixels
700W/㎡
250W/㎡
960*960mm*109 mm
Die-casting Aluminum
28KG
5000-6500 nits
Yes
14-16
Rear
Constant current
Novastar
50-60Hz
>100,000 hours
10000hours
2 weeks
Seatronic / Neutrik
5,000:1
160°/140°
110-220V/ AC 50-60Hz
-20~ +55 degree
10％～ 90％
3840Hz
IP65
Windows
<100 meters: UTP CAT.6 network cable (without relay).Or optical fiber transmission for over 500M-10,000M.
S-video,VGA,DVI,HDMI,SDI,DP

P8
8 mm
15,625 pixels/㎡
SMD 2727
8 meter
320*160 mm
3 *6 pcs
40 x20 pixels
700W/㎡
250W/㎡
960*960mm*109 mm
Die-casting Aluminum
28KG
5000-6500 nits
Yes
14-16
Rear
Constant current
Novastar
50-60Hz
>100,000 hours
10000hours
2 weeks
Seatronic / Neutrik
5,000:1
160°/140°
110-220V/ AC 50-60Hz
-20~ +55 degree
10％～ 90％
3840Hz
IP65
Windows
<100 meters: UTP CAT.6 network cable (without relay).Or optical fiber transmission for over 500M-10,000M.
S-video,VGA,DVI,HDMI,SDI,DP
