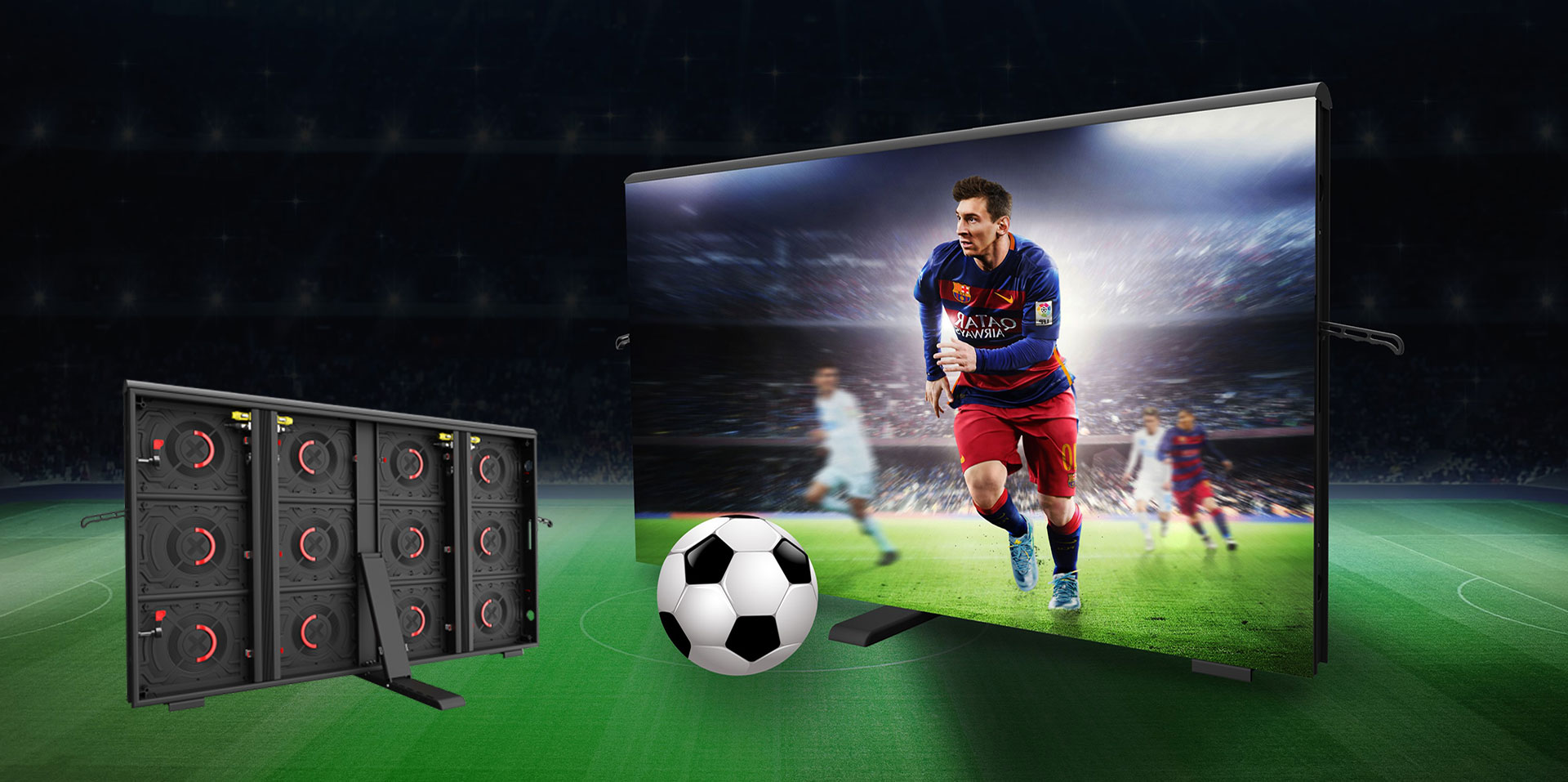

FI Series
FI Series
Best quality
Multiple Pixel Pitch Options
Front & Rear Maintenance
High Flatness
Best quality

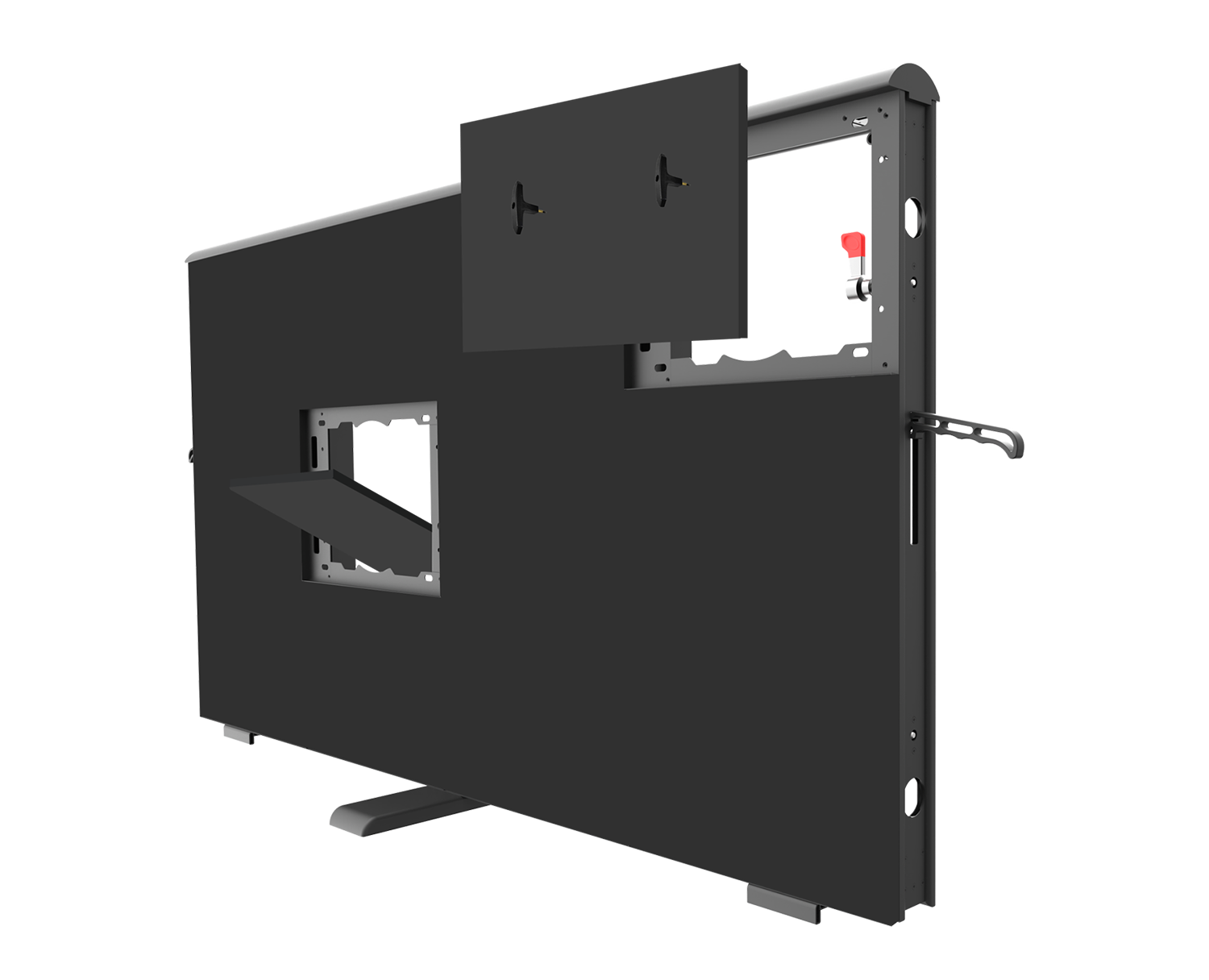

Front/Rear maintenance

Both front and back maintenance meets different site application


IP65 Waterproof,can better withstand the erosion of strong winds


and rainstorms


Front/Rear maintenance

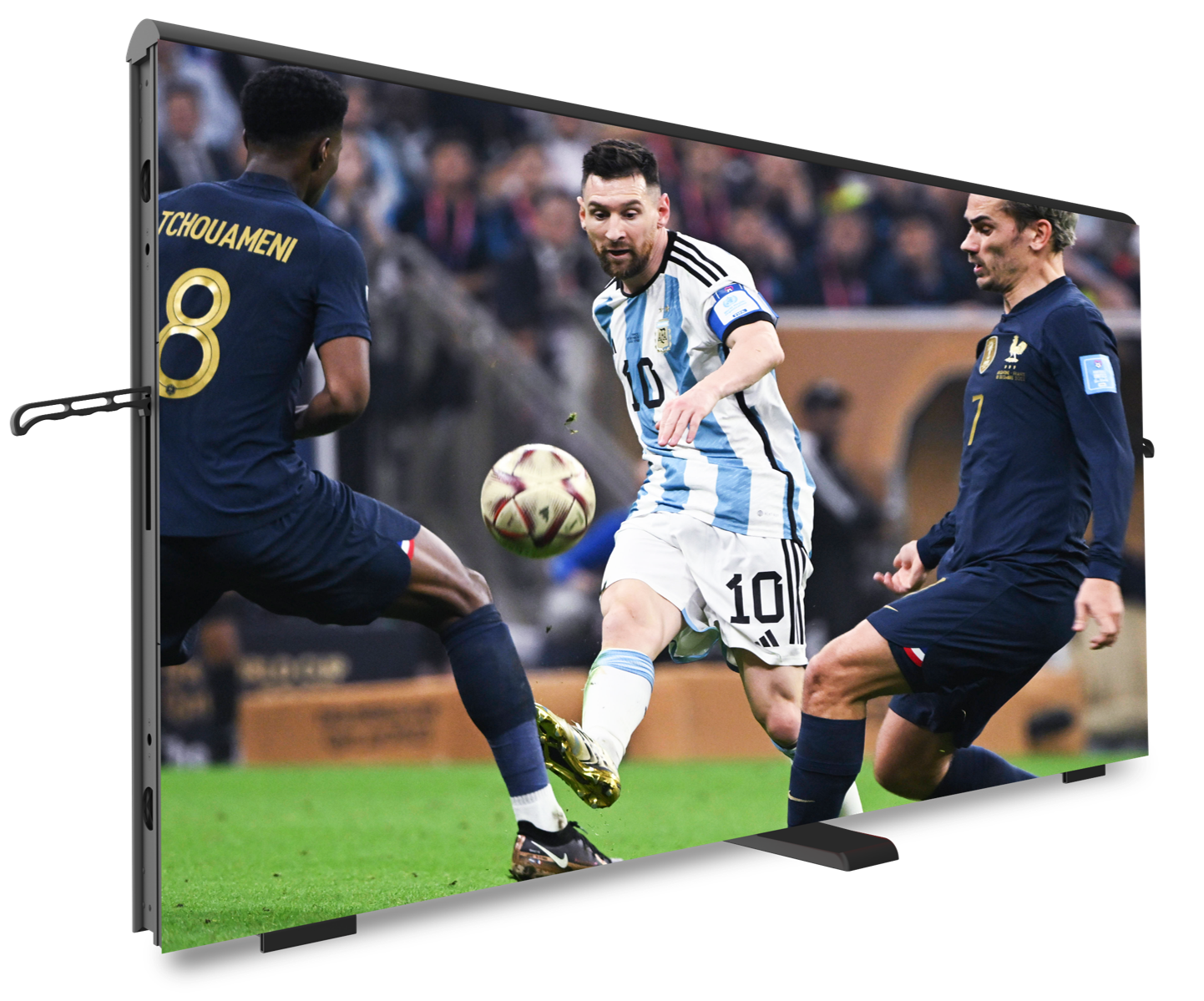

High Contrast and High Brightness

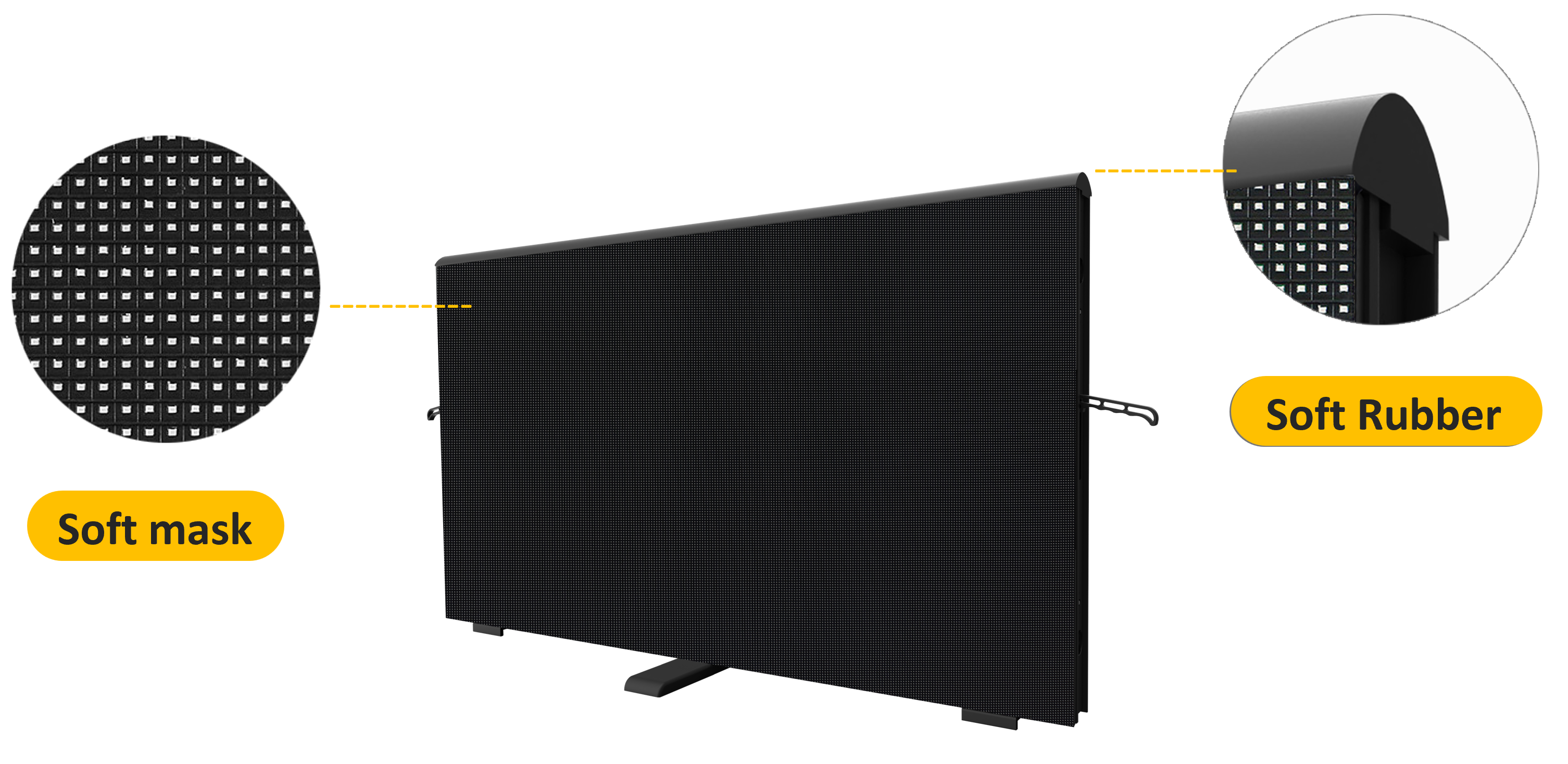

Frosted corrugated module mask for ultra-high contrast and vivid display


in bright light


Rubber and soft mask can protect the athletes from being hurt



High Contrast and High Brightness
Innovative Experience

Adjustable angle, wide viewing angle, 160° ultra-wide viewing angle,


creating an immersive and thrilling experience


With its compact design, seamless splicing and perfect flatness, the


 LED display offers unrivaled visual clarity and aesthetics.



Innovative Experience
Customized design is available

Fastlock design makes screen installation quickly, it saves much time


Dual backup of power signal makes operation more reliable


Aluminum profile caibnet is light weight,only 45KG,saves transportation


cost and installation cost




Customized design is available
Specifications
Outdoor perimeter series
P6.25
P8.33
P10
  • Model
  • SMD type
  • Physical density (dots/sqm)
  • Module resolution
  • Module dimension
  • Module quantity (W×H)
  • Panel resolution (W×H)
  • Panel size (mm)
  • Flatness (mm)
  • Maintenance mode
  • Brightness (nits)
  • Color temperature (K)
  • Cabinet weight
  • Viewing angle (V/H)
  • Contrast ratio
  • Frame-changing frequently
  • Drive mode
  • Refresh rate
  • Max power consumption (w/m²)
  • Avg. power consumption (w/m²)
  • Protection grade
  • Electric power requirements
  • Working Temp/Humidity(℃/RH)
  • Storage Temp/Humidity(℃/RH)
  • Cert


  • P6.25

  • SMD2727

  • 25600

  • 64X48

  • 400X300

  • 4X3

  • 128X144

  • 1600X900X98

  • ≤0.1

  • Front & Rear

  • 6500

  • 3200-9300 optional

  • 45

  • 140°/160°

  • 10000 : 1

  • 50/60

  • Static 1/6 scale

  • 3840

  • 700-800

  • 200-300

  • IP65

  • AC90-264V,47-63Hz

  • -20~60℃/10%~85%

  • -20~60℃/10%~85%

  • CCC/CE/RoHS/FCC/CB/TUV/IEC

  • P8.33

  • SMD2727

  • 14400

  • 48X36

  • 400X300

  • 4X3

  • 96X108

  • 1600X900X98

  • ≤0.1

  • Front & Rear

  • 6500

  • 3200-9300 optional

  • 45

  • 140°/160°

  • 10000 : 1

  • 50/60

  • Static 1/3 scale

  • 3840

  • 700-800

  • 200-300

  • IP65

  • AC90-264V,47-63Hz

  • -20~60℃/10%~85%

  • -20~60℃/10%~85%

  • CCC/CE/RoHS/FCC/CB/TUV/IEC

  • P10

  • SMD2727

  • 10000

  • 40X30

  • 400X300

  • 4X3

  • 80X90

  • 1600X900X98

  • ≤0.1

  • Front & Rear

  • 6500

  • 3200-9300 optional

  • 45

  • 140°/160°

  • 10000 : 1

  • 50/60

  • Static 1/2 scale

  • 3840

  • 700-800

  • 200-300

  • IP65

  • AC90-264V,47-63Hz

  • -20~60℃/10%~85%

  • -20~60℃/10%~85%

  • CCC/CE/RoHS/FCC/CB/TUV/IEC
