High Quality

High contrast

High brightness

High refresh

Fast delivery

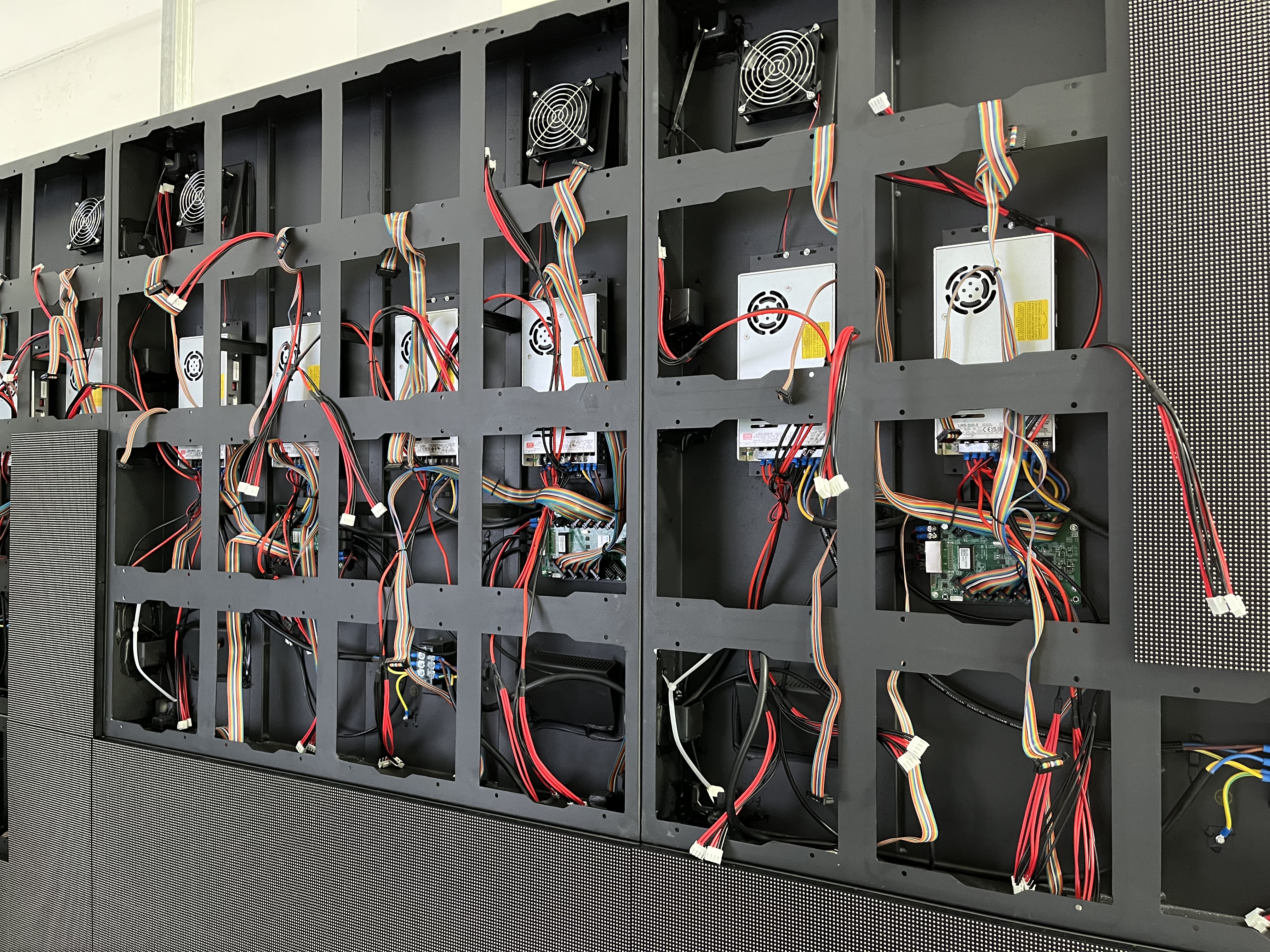

Outdoor P2/P2.5/P3

Precise module details provide deep contrast, a
key element to sharp images and colors that pop

Pixel Pitch:Outdoor P2/P2.5/P3mm Brightness：5000-7000 cd/m²
Module Size:320*160mm/320*320mm

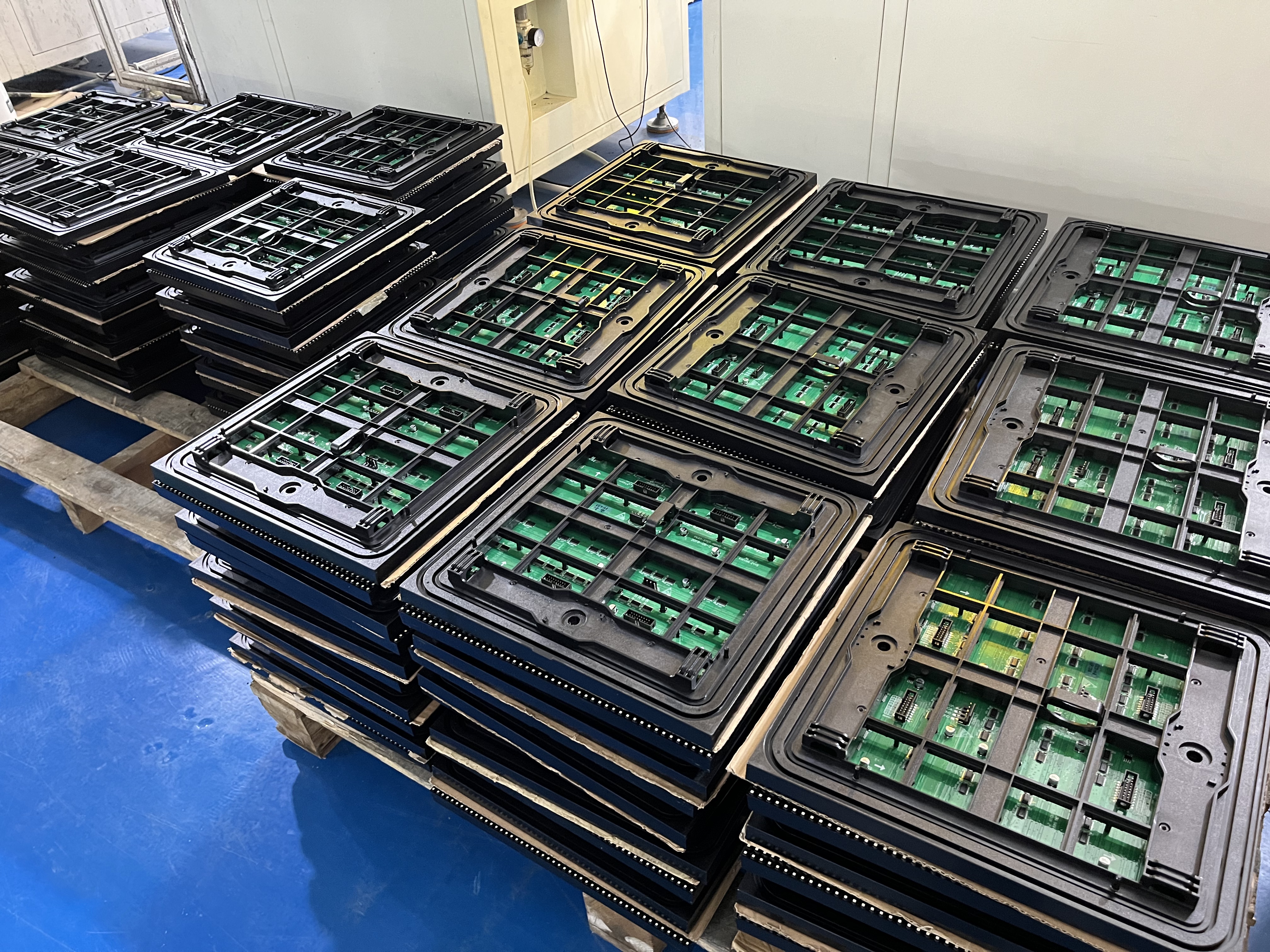

Outdoor P4/P5/P6

UV-protected module maintain a uniform appearance in bright

sunlight not only on day one,but for the lifetime of the display

Pixel Pitch:Outdoor P4/P5/P6mm Brightness：5000-7000 cd/m²

Module Size:320*160mm/320*320mm

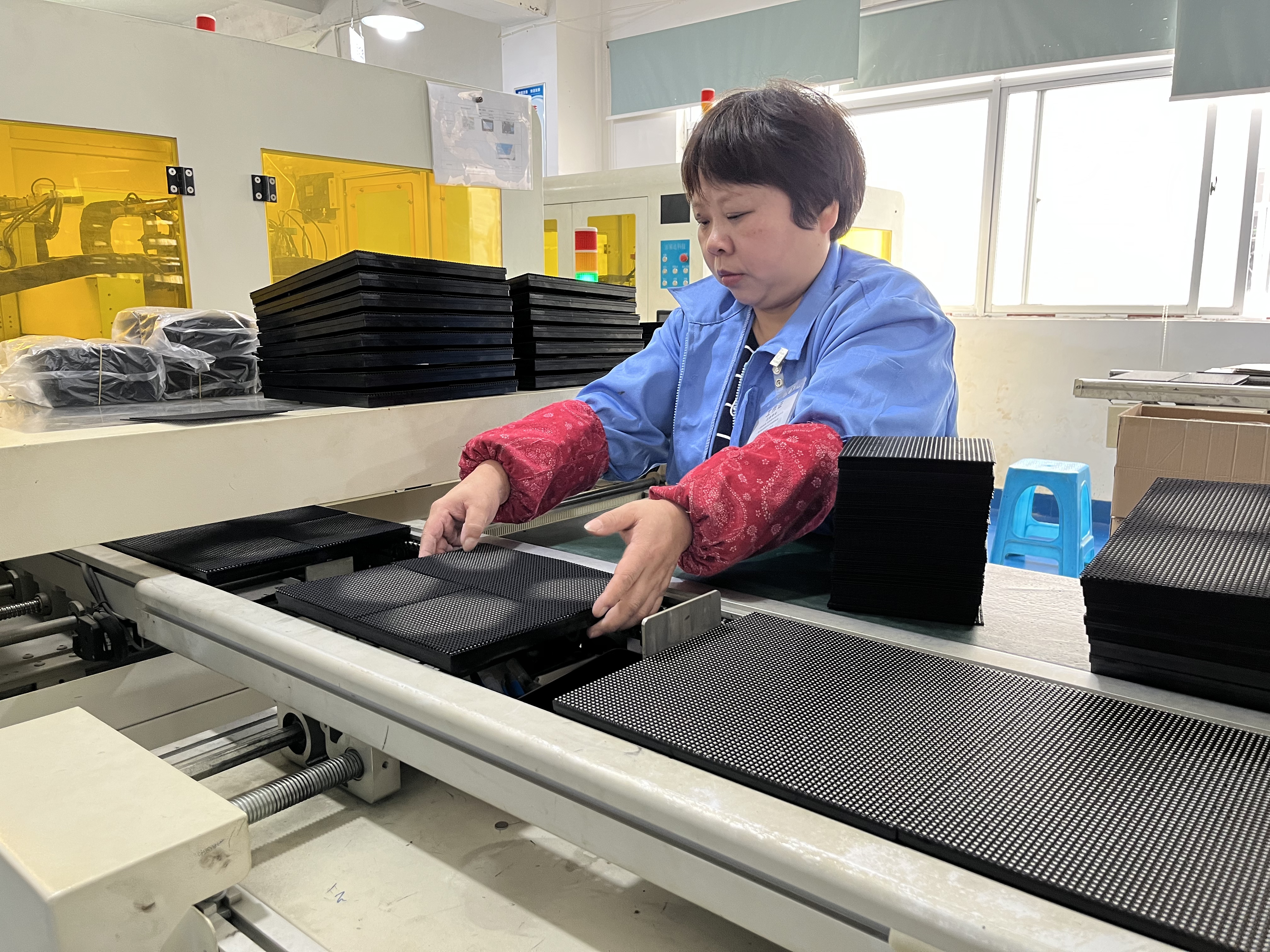

Outdoor P8/P10/P16

Support outdoor front maintance
Integrates seamlessly with a variety of other video products

Pixel Pitch:Outdoor P8/P10/P16mm Brightness：5000-7000 cd/m²
Module Size:320*160mm/320*320mm

Specifications

Outdoor LED modules series

Outdoor P2

Outdoor P2.5

Outdoor P3.072

Outdoor P4

Outdoor P5

Outdoor P6.6

Outdoor P8

Outdoor P10

Outdoor P16

Product Pixel Pitch
Configuration
Lamp Bead Package
Pixel density (dots/m2)
Modules Size (mm)
Modules Resolution
Refresh Rate (Hz)
Frame change frequency (Hz)
Gray Level (bit)
Modules flatness (mm)
Protection class
Maintenance
Standard Brightness (nits)
Color temperature (K)
Brightness uniformity
Control Method
Horizontal/Vertical Viewing Angle
Contrast rate
Working input voltage AC (V)
Typical Lifetime (hrs)Operating
Working temperature range (℃)
Storage temperature range (℃)
Operating Humidity Range (RH)
Storage Humidity Range (RH)
Control system

P2
1R1G1B (Full Color）
SMD1415
250000
320 x 160（Wx H ）
160 x 80
3840
50&60
14-16 bit
≤ 0.05
IP65
Back Maintenance
4000-5500
3000—10000 Ajustable
≥99%
Synchronize / Asynchronize
≥160°/≥160°
6000:1
110-220
100000
-20—60
-20—60
20—93%
20—95%
Novastar / Colorlight /Huidu

P2.5
1R1G1B (Full Color）
SMD1415
160000
320 x 160（Wx H ）
128 x 64
3840
50&60
14-16 bit
≤ 0.05
IP65
Back Maintenance
4000-5500
3000—10000 Ajustable
≥99%
Synchronize / Asynchronize
≥160°/≥160°
6000:1
110-220
100000
-20—60
-20—60
20—93%
20—95%
Novastar / Colorlight /Huidu

P3.072
1R1G1B (Full Color）
SMD1415
105963
320 x 160（Wx H ）
104 x 52
3840
50&60
14-16 bit
≤ 0.05
IP65
Front /Back Maintenance
4000-5500
3000—10000 Ajustable
≥99%
Synchronize / Asynchronize
≥160°/≥160°
6000:1
110-220
100000
-20—60
-20—60
20—93%
20—95%
Novastar / Colorlight /Huidu

P4
1R1G1B (Full Color）
Black SMD1515
62500
320 x 160（Wx H ）
80 x 40
3840
50&60
14-16 bit
≤ 0.05
IP65
Front /Back Maintenance
5000-6000
3000—10000 Ajustable
≥99%
Synchronize / Asynchronize
≥160°/≥160°
6000:1
110-220
100000
-20—60
-20—60
20—93%
20—95%
Novastar / Colorlight /Huidu

P5
1R1G1B (Full Color）
Black SMD1515
40000
320 x 160（Wx H ）
64 x 32
3840
50&60
14-16 bit
≤ 0.05
IP65
Front /Back Maintenance
5500-6500
3000—10000 Ajustable
≥99%
Synchronize / Asynchronize
≥160°/≥160°
6000:1
110-220
100000
-20—60
-20—60
20—93%
20—95%
Novastar / Colorlight /Huidu

P6.6
1R1G1B (Full Color）
Black SMD1515
22477
320 x 160（Wx H ）
48 x 24
3840
50&60
14-16 bit
≤ 0.05
IP65
Front /Back Maintenance
6000-10000
3000—10000 Ajustable
≥99%
Synchronize / Asynchronize
≥160°/≥160°
6000:1
110-220
100000
-20—60
-20—60
20—93%
20—95%
Novastar / Colorlight /Huidu

P8
1R1G1B (Full Color）
Black SMD1515
15625
320 x 160（Wx H ）
40 x 20
3840
50&60
14-16 bit
≤ 0.05
IP65
Front /Back Maintenance
6000-10000
3000—10000 Ajustable
≥99%
Synchronize / Asynchronize
≥160°/≥160°
6000:1
110-220
100000
-20—60
-20—60
20—93%
20—95%
Novastar / Colorlight /Huidu

P10
1R1G1B (Full Color）
Black SMD1515
10000
320 x 160（Wx H ）
32 x 16
3840
50&60
14-16 bit
≤ 0.05
IP65
Front /Back Maintenance
6000-10000
3000—10000 Ajustable
≥99%
Synchronize / Asynchronize
≥160°/≥160°
6000:1
110-220
100000
-20—60
-20—60
20—93%
20—95%
Novastar / Colorlight /Huidu

P10
1R1G1B (Full Color）
Black SMD1515
10000
320 x 160（Wx H ）
32 x 16
3840
50&60
14-16 bit
≤ 0.05
IP65
Front /Back Maintenance
6000-10000
3000—10000 Ajustable
≥99%
Synchronize / Asynchronize
≥160°/≥160°
6000:1
110-220
100000
-20—60
-20—60
20—93%
20—95%
Novastar / Colorlight /Huidu

P16
1R1G1B (Full Color）
Black SMD1515
3906
320 x 160（Wx H ）
20 x 10
3840
50&60
14-16 bit
≤ 0.05
IP65
Front /Back Maintenance
6000-10000
3000—10000 Ajustable
≥99%
Synchronize / Asynchronize
≥160°/≥160°
6000:1
110-220
100000
-20—60
-20—60
20—93%
20—95%
Novastar / Colorlight /Huidu
