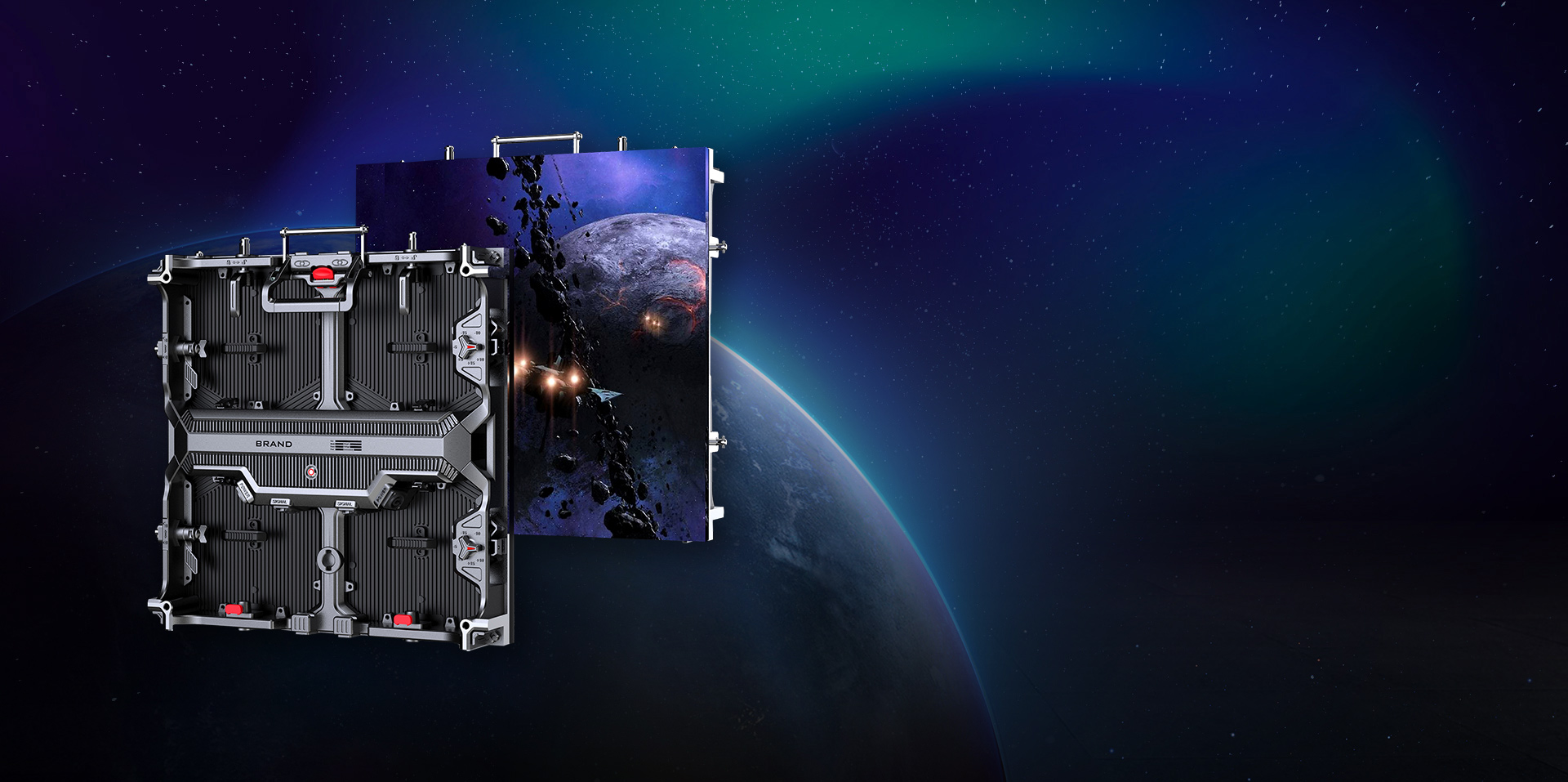

Rave Series Indoor - Indoor Rental - Rental LED Screen - Products - Creative special-shaped led displays,Indoor&Outdoor flexible bend LED displays,Holographic invisible transparent screens Shinerave Electronic Co.,Ltd.

Die Casting Aluminum

Multiple Pixel Pitch Options

Front & Rear Maintenance

High Flatness

Die Casting Aluminum

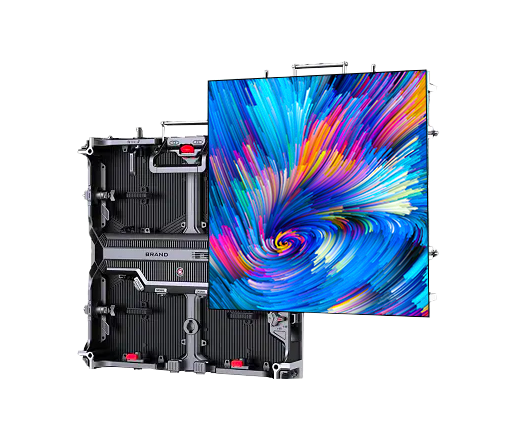

Hot: 2023 New Product

Higher level: Fabulous cabinet design

Locks angle: -10,-5,0,+5,+10,+15 degree

Intelligence: Magnetic module, rear/front maintenance

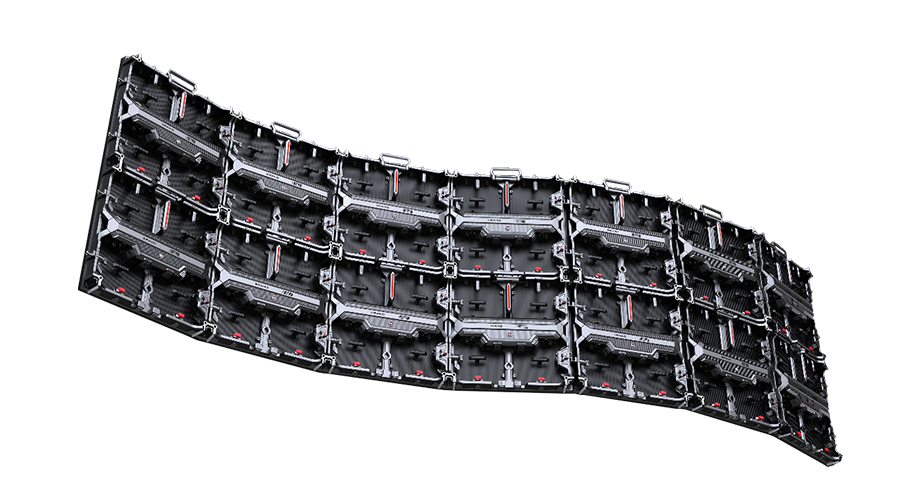

Perfect cabinets structure

Front / rear maintenance, modules and power

supply, receiver cards could be removed from

the front side and back side; Magnetic modules,

seperate detachable back cover and corner protector

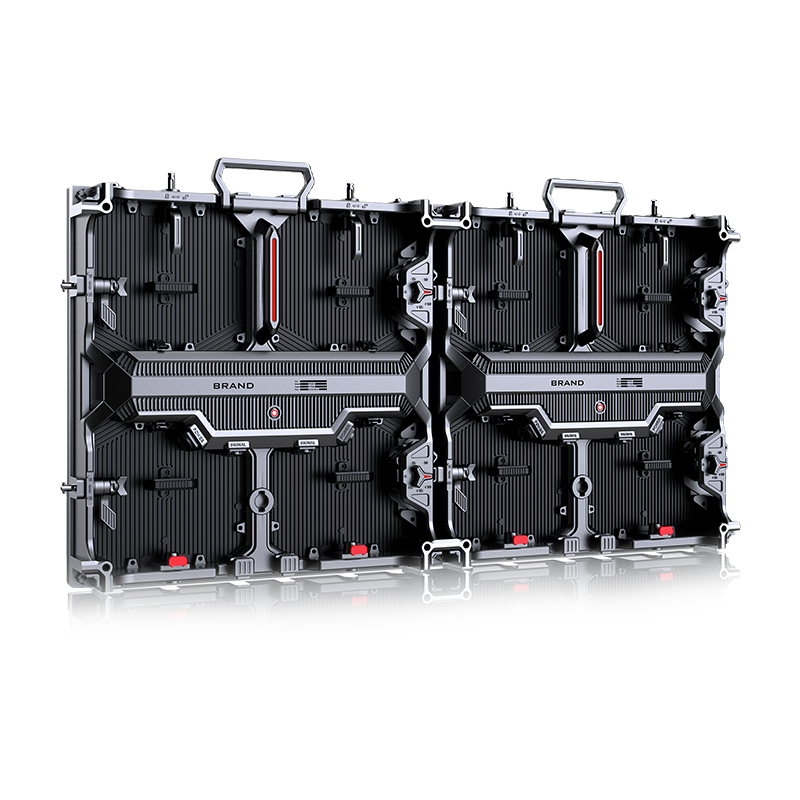

High precision curve lock design

high precision curve lock adopt (-10 degree to 15 degree）

rotation control, more accurate, easy to use,

and quick adjust the degree of curve

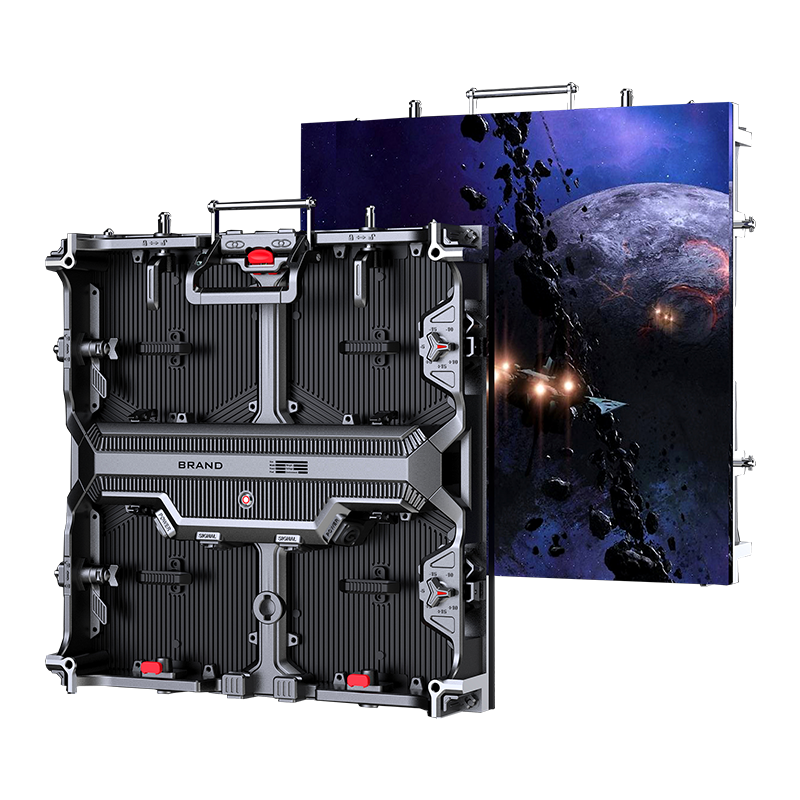

Slim and light die-casting aluminum cabinets

Stacking & Hanging installation with Multi-function hanging beam

Specifications

Indoor Rental series

Indoor P1.953

Indoor P2.604

Indoor P2.97

Indoor P3.91

Product Number
Pixel pitch
LEDs
Size of Module
Resolution of Module
Size of Cabinet
Resolution of cabinet
Material of Cabinet
Weight of Cabinet
Brightness
Density
Best Viewing Angle
Pixel Configuration
Best Viewing Distance
Maximum Power Consumption
Average Power Consumption
Control Method
Gray Scale
Color Temperature
Contrast
Driving Device
Working Voltage
Working Temperature
MTBF
Frame Frequence
Refresh Frequence
IP Grade
Life Span
Data Transafer Method

Indoor P1.953
1.95 mm
GOB
250mm×250mm
128*128
500mm*500mm*76mm
500*1000mm*76mm
256*256 / 256 * 512
Die-casting Aluminum
7.5 Kg/cabinet&
14Kg/cabinet
800-1000cd/m²
262144 dots/㎡
160°/160°
1R1G1B
> 1.9 M
<700W/㎡
< 250W/㎡
Asynchronization
14-16 bits
3000-10000k
≥4000：1
Constant current
AC100-240V/110V±10%
-20℃~+60℃
>10,000 hours
50-60HZ
≥3840Hz
IP31
100,000 hours
RJ45

Indoor P2.604
2.6 mm
SMD1515/2121
250mm×250mm
96*96
500mm*500mm*76mm
500*1000mm*76mm
192*192 / 192*384
Die-casting Aluminum
7.5 Kg/cabinet&
14Kg/cabinet
800-1000cd/m²
147456 dots/㎡
160°/160°
1R1G1B
> 2.6 M
<700W/㎡
< 250W/㎡
Asynchronization
14-16 bits
3000-10000k
≥4000：1
Constant current
AC100-240V/110V±10%
-20℃~+60℃
>10,000 hours
50-60HZ
≥3840Hz
IP31
100,000 hours
RJ45

Indoor P2.97
2.97 mm
SMD2121
250mm×250mm
84×84
500mm*500mm*76mm
500*1000mm*76mm
168*168 / 168*336
Die-casting Aluminum
7.5 Kg/cabinet&
14Kg/cabinet
800-1000cd/m²
112896 dots/㎡
160°/160°
1R1G1B
>2.9 M
<750W/㎡
<260W/㎡
Asynchronization
14-16 bits
3000-10000k
≥4000：1
Constant current
AC100-240V/110V±10%
-20℃~+60℃
>10,000 hours
50-60HZ
≥3840Hz
IP31
100,000 hours
RJ45

Indoor P3.91
3.91 mm
SMD2121
250mm×250mm
64×64
500mm*500mm*76mm
500*1000mm*76mm
128*128 / 128*256
Die-casting Aluminum
7.5 Kg/cabinet&
14Kg/cabinet
800-1000cd/m²
65536 dots/㎡
160°/160°
1R1G1B
>3.9 M
<600W/㎡
<200W/㎡
Asynchronization
14-16 bits
3000-10000k
≥4000：1
Constant current
AC100-240V/110V±10%
-20℃~+60℃
>10,000 hours
50-60HZ
≥3840Hz
IP31
100,000 hours
RJ45
