PT Series Indoor - Indoor Rental - Rental LED Screen - Products - Creative special-shaped led displays,Indoor&Outdoor flexible bend LED displays,Holographic invisible transparent screens Shinerave Electronic Co.,Ltd.

Die Casting Aluminum

Multiple Pixel Pitch Options

Front & Rear Maintenance

High Flatness

Die Casting Aluminum

Hot: 100,000+ cabinets produced

Strong: faster and bigger Locks for wind resistance while hanging

Less price: most cost performance

High precision: flat and seamless

With 45 degree cut for corner

more stage event design，more creative

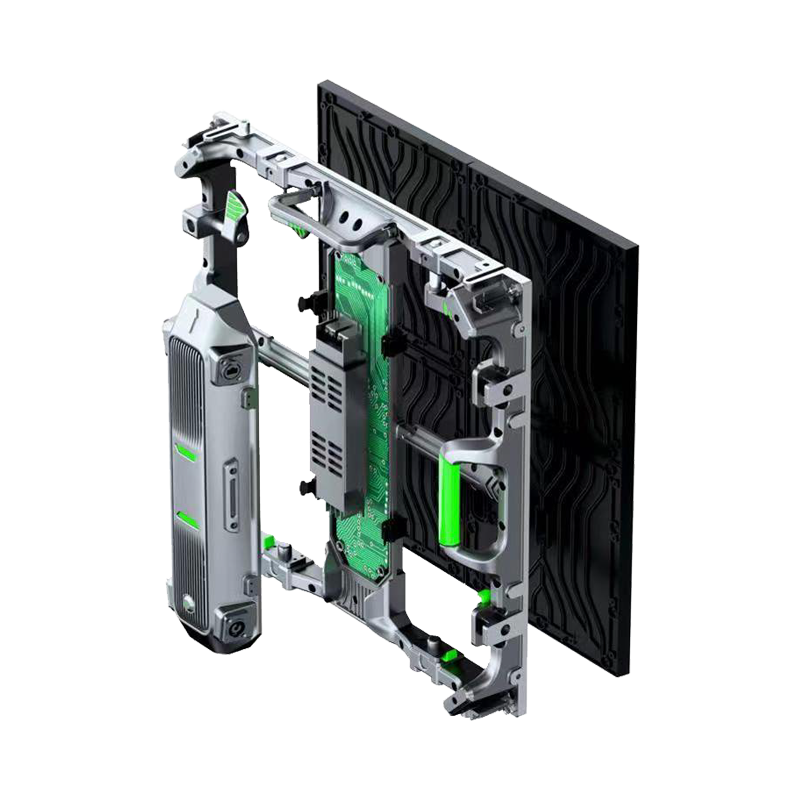

Structure Details

Front Back Maintenance Modules and power receiving

cards can be removed from the front side

Perfect Cabinet Design With Magnetic Modules,

Seperate Detachable Back Cover and Corner Protector

Extremely light weight and thin thickness

7.5Kg 500 x 500mm

14Kg 500 x 1000mm

Extremely light weight and thin thickness

Specifications

Indoor-P1.95

Indoor-P2.6

Indoor-P 2.97

Indoor-P3.91

Product Number
Pixel pitch
LEDs
Size of Module
Resolution of Module
Size of Cabinet
Resolution of cabinet
Material of Cabinet
Weight of Cabinet
Brightness
Density
Best Viewing Angle
Pixel Configuration
Best Viewing Distance
Maximum Power Consumption
Average Power Consumption
Control Method
Gray Scale
Color Temperature
Contrast
Driving Device
Working Voltage
Working Temperature
MTBF
Frame Frequence
Refresh Frequence
IP Grade
Life Span
Data Transafer Method

Indoor-P1.95
1.95 mm
SMD 1515
250mm×250mm
128x128
500mm*500mm*76mm
256x256
Die-casting Aluminum
7.5 Kg/cabinet&
1000 nit/㎡
262,144 dots/㎡
160°/160°
1R1G1B
>1.9 M
<600W/㎡
<200W/㎡
Asynchronization
14-16 bits
3000-10000k
≥4000：1
Constant current
AC100-240V/110V±10%
-20℃~+60℃
>10,000 hours
50-60Hz
≥3840Hz
IP30
100,000 hours
RJ45

Indoor-P2.6
2.6 mm
SMD 1515
250mm×250mm
96×96
500mm*500mm*76mm
500*1000mm*76mm
192×192/192x384
Die-casting Aluminum
7.5 Kg/cabinet&
14Kg/cabinet
1000 nit/㎡
147,456 dots/㎡
160°/160°
1R1G1B
>2.6 M
<600W/㎡
<200W/㎡
Asynchronization
14-16 bits
3000-10000k
≥4000：1
Constant current
AC100-240V/110V±10%
-20℃~+60℃
>10,000 hours
50-60Hz
≥3840Hz
IP30
100,000 hours
RJ45

Indoor-P 2.97
2.97 mm
SMD 1515
250mm×250mm
84×84
500mm*500mm*76mm
500*1000mm*76mm
168×168/168x336
Die-casting Aluminum
7.5 Kg/cabinet&
14Kg/cabinet
1000 nit/㎡
112,896 dots/㎡
160°/160°
1R1G1B
>2.9 M
<750W/㎡
<260W/㎡
Asynchronization
14-16 bits
3000-10000k
≥4000：1
Constant current
AC100-240V/110V±10%
-20℃~+60℃
>10,000 hours
50-60Hz
≥3840Hz
IP30
100,000 hours
RJ45

Indoor-P3.91
3.91 mm
SMD 2020
250mm×250mm
64×64
500mm*500mm*76mm
500*1000mm*76mm
128×128/128x256
Die-casting Aluminum
7.5 Kg/cabinet&
14Kg/cabinet
1000 nit/㎡
65,536 dots/㎡
160°/160°
1R1G1B
>3.9 M
<600W/㎡
<200W/㎡
Asynchronization
14-16 bits
3000-10000k
≥4000：1
Constant current
AC100-240V/110V±10%
-20℃~+60℃
>10,000 hours
50-60Hz
≥3840Hz
IP30
100,000 hours
RJ45
